Applications:
• Stage
• Studio
• Installations
Cable Colour:
• Black
|

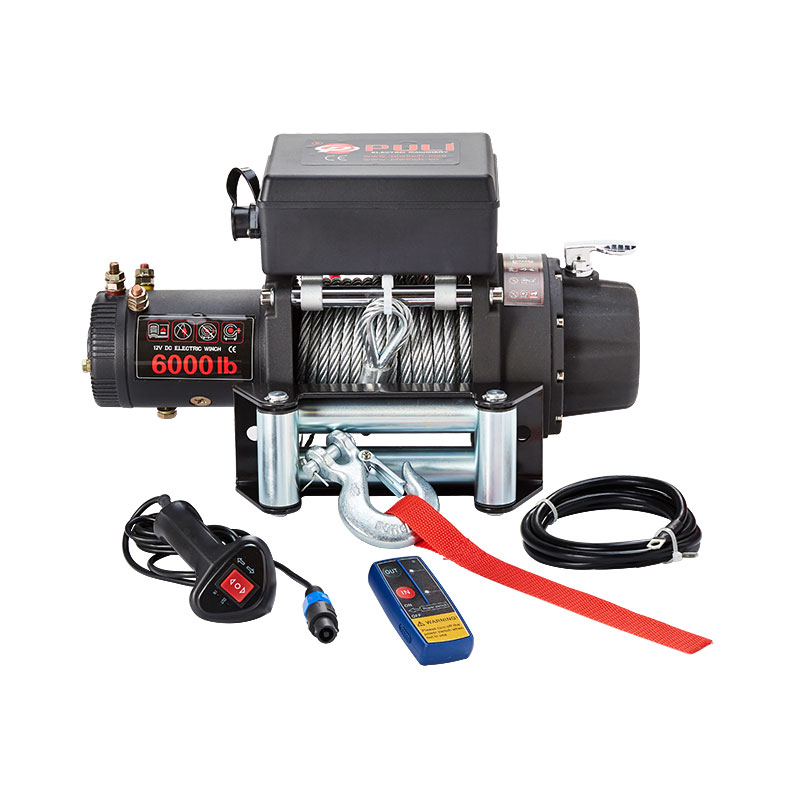

TECHNICAL DATA: |
|
|
Rated Line Pull |
6000LB(2721kg) single-line |
|
Motor |
4.4hp/3.3kw 12V, Series Wound motor |
|
Gear Train |
3-stage planetary |
|
Gear Reduction Ratio |
216:1 |
|
Clutch |
Up and down 90° |
|
Cable |
φ7.2mm×15m |
|
Drum Size |
φ64mm×134mm |
|
Overall Dimensions |
(L×W×H)17.0”×6.4”×6.7”(432x162x170mm) |
|
Gross Weight |
56lbs(25.0kg) |
|
Duty Cycle |
Intermittently |
|
Fairlead |
4-way roller fairlead |
|
Package |
1pc/box,(600x245x370mm) |
|
Mounting Bolt Pattern |
164 x 114.3mm |
|
Remote Control |
Included |
|
Line Pull |
Lbs |
NO |
2000 |
4000 |
6000 |
|
Kgs |
LOAD |
907 |
1814 |
2721 |
|
|
Line speed |
Ft/min |
30.2 |
20.7 |
18.0 |
13.8 |
|
M/min |
9.2 |
6.3 |
5.5 |
4.2 |
|
|
Motor Current |
amps |
75 |
95 |
195 |
240 |
|
Layer of cable |
|
1 |
2 |
3 |
4 |
|
Rated lin |
Lbs |
6000 |
5200 |
4310 |
2810 |
|
Pull per layer |
Kgs |
2721 |
2359 |
1955 |
1275 |
|
Cumulative |
Ft |
11.5 |
28.5 |
45.3 |
49.2 |
|
Cable capacity |
m |
3.5 |
8.7 |
13.8 |
15 |
Mounting Bolt Pattern:
Dimensions
