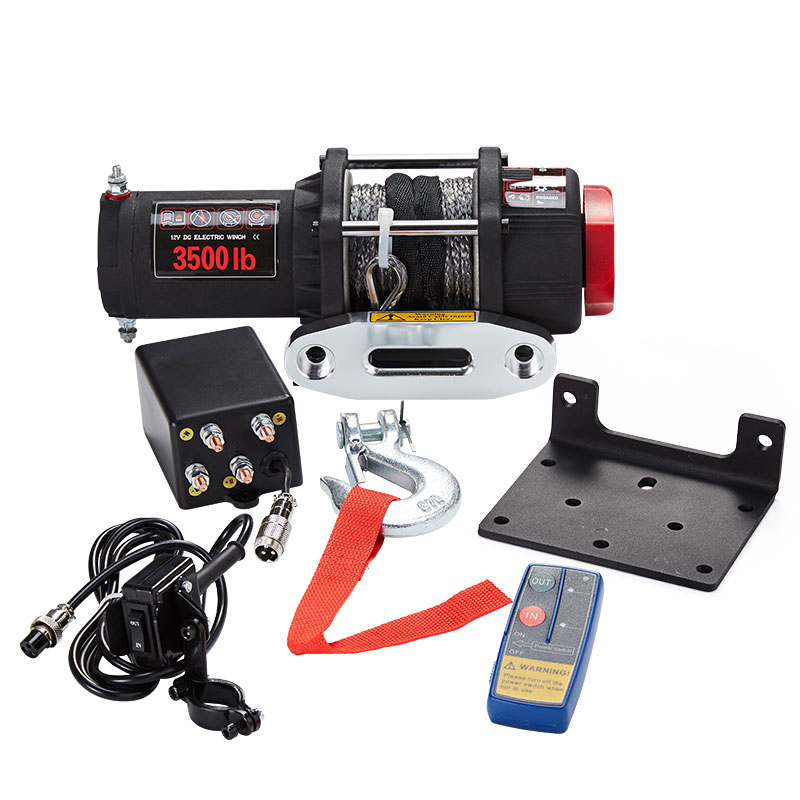

PULI Electric Winch HD8.035 3500LBS
JP-SHD8.035PL001

Applications:

Stage

Studio

Installations

Cable Colour:

Black


TECHNICAL DATA:

Rated Line Pull
3500LB(1587kg) single-line
Motor
3.3hp/2.5kw 12V, Permanent Magnet Motor
Gear Train
2-stage planetary
Gear Reduction Ratio
271:1
Clutch
rotate 105°
Cable

φ4.8mm×13m

Drum Size
φ38mm×74mm
Overall Dimensions
(L×W×H) 12.6''x4.5''x4.7''(320×114×120mm)
Gross Weight
26lbs(12kg)
Duty Cycle

Intermittently

Fairlead
aluminium fairlead
Package
1pc/box,420×320×150mm
Mounting Bolt Pattern
124x76.2mm
Remote Control
Included


LINE SPEED& DRAW-FIRST LAYER:

Line Pull

Lbs

NO

1000

2500

3500


Kgs

LOAD

454

1134

1587


Line speed

Ft/min

14.4

9.8

7.2

5.9


M/min

4.4

3.0

2.2

1.8


Motor Current

amps

35

92

150

180



LINE PULL AND Cable Capacity:

Layer of cable


1

2

3

4


Rated lin

Lbs

3500

2934

2524

2215


Pull per layer

Kgs

1587

1331

1145

1005


Cumulative

Ft

8.5

18.7

29.9

43


Cable capacity

m

2.6

5.7

9.1

13








Mounting Bolt Pattern:

Dimensions
