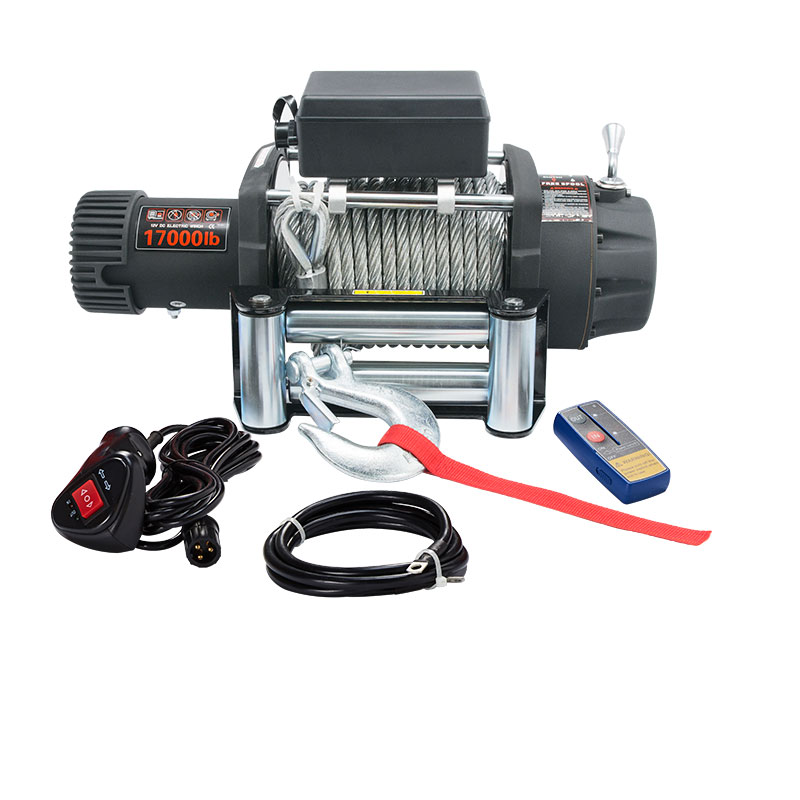

PULI Winch 17000LBS SC Clutch PTDM7-170
JP-SPTDM7-170PL003

Applications:

.Stage

.Studio

.Installations

Cable Colour:

.Black


TECHNICAL DATA:

Rated Line Pull
17000LB(7711kg) single-line
Motor
7.2hp/5.4kw 12V, Series Wound motor
Gear Train
3-stage planetary
Gear Reduction Ratio
364:1
Clutch
turning 180°
Cable

φ11mm×26m

Drum Size
φ89mm×224mm
Overall Dimensions
(L×W×H)23.1”×8.5”×10.1”(588×215×256mm)
Gross Weight
130lbs(59kg)
Duty Cycle

Intermittently

Fairlead
4-way roller fairlead
Package
1pc/box,660x270x420mm
Mounting Bolt Pattern
254 x 114.3mm
Remote Control
Included


LINE SPEED& DRAW-FIRST LAYER:

Line Pull

Lbs

NO

4000

8000

10000

12000

17000

Kgs

LOAD

1814

3630

4536

5443

7711

Line speed

Ft/min

28.2

21.3

14.8

10.8

7.2

4.9

M/min

8.6

6.5

4.5

3.3

2.2

1.5

Motor Current

Amps

70

195

291

335

350

418


LINE PULL AND Cable Capacity:

Layer of cable


1

2

3

4

Rated lin

Lbs

17000

13800

11300

9700

Pull per layer

Kgs

7711

6260

5126

4400

Cumulative

Ft

14

39

66

86

Cable capacity

M

4.2

11.8

19.2

26.0







Mounting Bolt Pattern:

Dimensions
