Applications:
.Stage
.Studio
.Installations
Cable Colour:
.Black
|

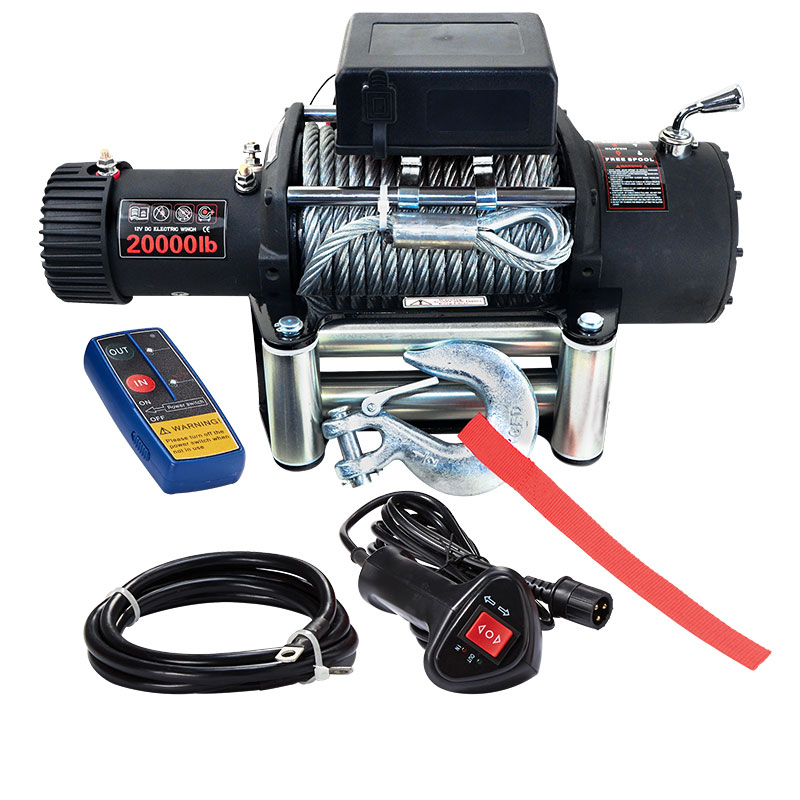

TECHNICAL DATA: |
|
|
Rated Line Pull |
20000LB(9071kg) single-line |
|
Motor |
7.8hp/5.8kw 12V, Series Wound motor |
|
Gear Train |
4-stage planetary |
|
Gear Reduction Ratio |
469:1 |
|
Clutch |
turning 180° |
|
Cable |
φ12mm×27m |
|
Drum Size |
φ89mm×224mm |
|
Overall Dimensions |
(L×W×H)24.3”×7.7”×10.2”(618x196x260mm) |
|
Gross Weight |
141lbs(64kg) |
|
Duty Cycle |
Intermittently |
|
Fairlead |
4-way roller fairlead |
|
Package |
1pc/box,660×270×420mm |
|
Mounting Bolt Pattern |
254 x 114.3mm |
|
Remote Control |
Included |
|
Line Pull |
Lbs |
NO |
8000 |
10000 |
15000 |
17000 |
20000 |
|
|
Kgs |
LOAD |
3630 |
4536 |
6804 |
7711 |
9071 |
|
|
|
Line speed |
Ft/min |
25.7 |
16.1 |
10.5 |
7.5 |
5.6 |
3.0 |
|
|
M/min |
7.8 |
4.9 |
3.2 |
2.3 |
1.7 |
0.9 |
|
|
|
Motor Current |
Amps |
142 |
285 |
330 |
395 |
410 |
430 |
|
|
Layer of cable |
|
1 |
2 |
3 |
4 |
|
Rated lin |
Lbs |
20000 |
17000 |
16100 |
15230 |
|
Pull per layer |
Kgs |
9071 |
7711 |
7303 |
6908 |
|
Cumulative |
Ft |
12.8 |
33.1 |
60.0 |
89.0 |
|
Cable capacity |
M |
3.9 |
10.1 |
18.3 |
27.0 |
Mounting Bolt Pattern:
Dimensions
