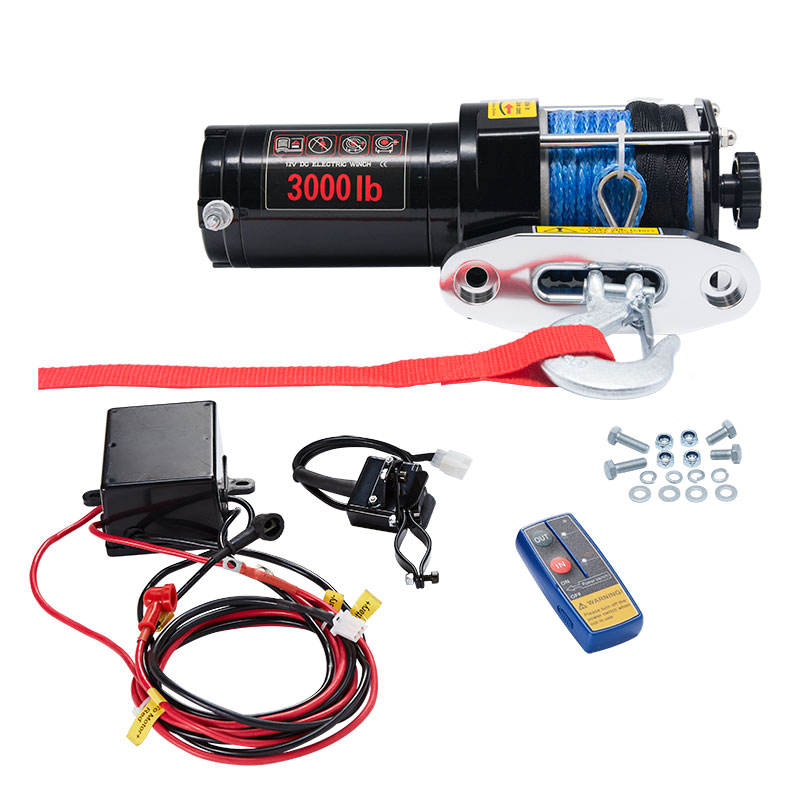

PULI Electric Winch VY8.030-02 3000LBS
JP-SVY8.030PL002

Applications:

Stage

Studio

Installations

Cable Colour:

Black


TECHNICAL DATA:

Rated Line Pull
3000LB(1361kg) single-line
Motor
3.0hp/2.2kw 12V, Permanent Magnet Motor
Gear Train
1-stage planetary
Gear Reduction Ratio
153:1
Clutch
rotate 105°
Cable

φ4.76mm×13m

Drum Size
φ38mm×72mm
Overall Dimensions
(L×W×H)12.8”×4.1”×4.1”(325×105×105mm)
Gross Weight
21.0lbs(9.8kg)
Duty Cycle

Intermittently

Fairlead
aluminium fairlead
Package
1pc/box 415×345×163mm
Mounting Bolt Pattern
5.1"x3.15”(130×80mm )
Remote Control
Included


LINE SPEED& DRAW-FIRST LAYER:

Line Pull

Lbs


0

1000

2000

3000

Kgs


0

454

907

1361

Line speed

Ft/min


10.5

7.5

3.6

2.3

M/min


3.2

2.3

1.1

0.7

Motor Current

amps


11

60

92

150


LINE PULL AND Cable Capacity:

Layer of cable


1

2

3

4

5

Rated lin

Lbs

3000

2370

1960

1670

1460

Pull per layer

Kgs

1361

1075

889

756

662

Cumulative

Ft

8.9

16.1

25.6

37.1

43

Cable capacity

m

2.7

4.9

7.8

11.3

13







Mounting Bolt Pattern:

Dimensions
