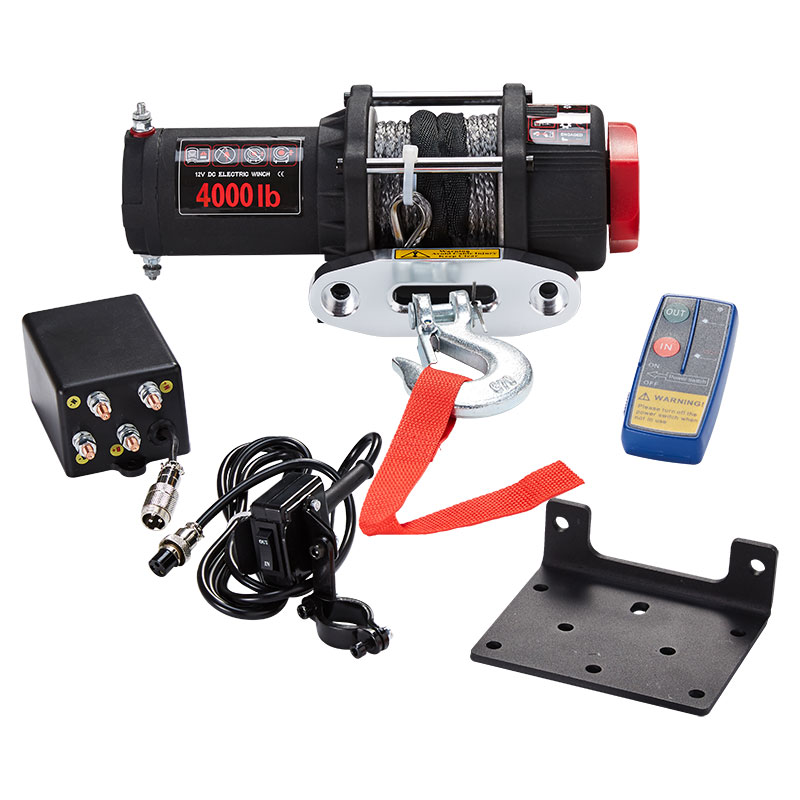

PULI Electric Winch HD8.040 4000LBS
JP-SHD8.040PL001

Applications:

Stage

Studio

Installations

Cable Colour:

Black


TECHNICAL DATA:

Rated Line Pull
4000LB(1814kg) single-line
Motor
3.4hp/2.5kw 12V, Permanent Magnet Motor
Gear Train
2-stage planetary
Gear Reduction Ratio
271:1
Clutch
rotate 105°
Cable

φ4.8mm×13m

Drum Size
φ38mm×74mm
Overall Dimensions
(L×W×H)12.6''x4.5''x4.7''(320×114×120mm)
Gross Weight
25lbs(11kg)
Duty Cycle

Intermittently

Fairlead
aluminum fairlead
Package
1pc/box,(420×320×150mm)
Mounting Bolt Pattern
124x76.2mm
Remote Control
Included


LINE SPEED& DRAW-FIRST LAYER:

Line Pull

Lbs

NO

1000

2500

3500

4000

Kgs

LOAD

454

1134

1587

1814

Line speed

Ft/min

14.4

9.8

7.2

5.9

6.2

M/min

4.4

3.0

2.2

2.0

1.8

Motor Current

amps

35

90

135

160

180


LINE PULL AND Cable Capacity:

Layer of cable


1

2

3

4

5

Rated lin

Lbs

4000

3500

2934

2524

2215

Pull per layer

Kgs

1814

1587

1331

1145

1005

Cumulative

Ft

8.2

8.5

18.7

29.9

43

Cable capacity

m

2.6

5.7

9.0

10.8

13







Mounting Bolt Pattern:

Dimensions
