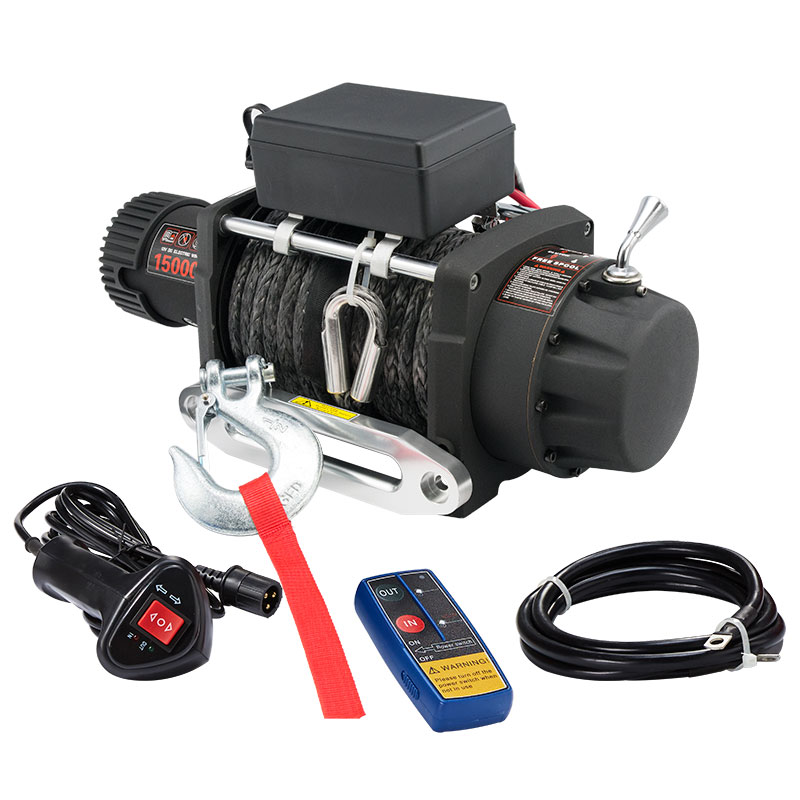

PULI Winch 15000LBS SC Clutch PTDM8-150
JP-SPTDM8-150PL003

Applications:

.Stage

.Studio

.Installations

Cable Colour:

.Black


TECHNICAL DATA:

Rated Line Pull
15000LB(6804kg) single-line
Motor
7.0hp/5.1kw 12V, Series Wound motor
Gear Train
3-stage planetary
Gear Reduction Ratio
364:1
Clutch
turning 180°
Cable

φ11mm×26m

Drum Size
φ89mm×224mm
Overall Dimensions
(L×W×H)23.1”×8.5”×10.1”(588x215x256mm)
Gross Weight
116.4lbs(52.8kg)
Duty Cycle

Intermittently

Fairlead
aluminium fairlead
Package
1pc/box,660×270×420mm
Mounting Bolt Pattern
254 x 114.3mm
Remote Control
Included


LINE SPEED& DRAW-FIRST LAYER:

Line Pull

Lbs

NO

4000

6000

8000

10000

12000

15000

Kgs

LOAD

1814

2721

3630

4536

5443

6804

Line speed

Ft/min

27.9

21.0

16.7

14.8

11.2

7.5

5.6

M/min

8.5

6.4

5.1

4.5

3.4

2.3

1.7

Motor Current

Amps

70

200

240

291

335

350

392


LINE PULL AND Cable Capacity:

Layer of cable


1

2

3

4

Rated lin

Lbs

15000

13800

11300

9358

Pull per layer

Kgs

6804

6260

5126

4245

Cumulative

Ft

14

39

63

85

Cable capacity

M

4.2

11.8

19.2

26.0







Mounting Bolt Pattern:

Dimensions
