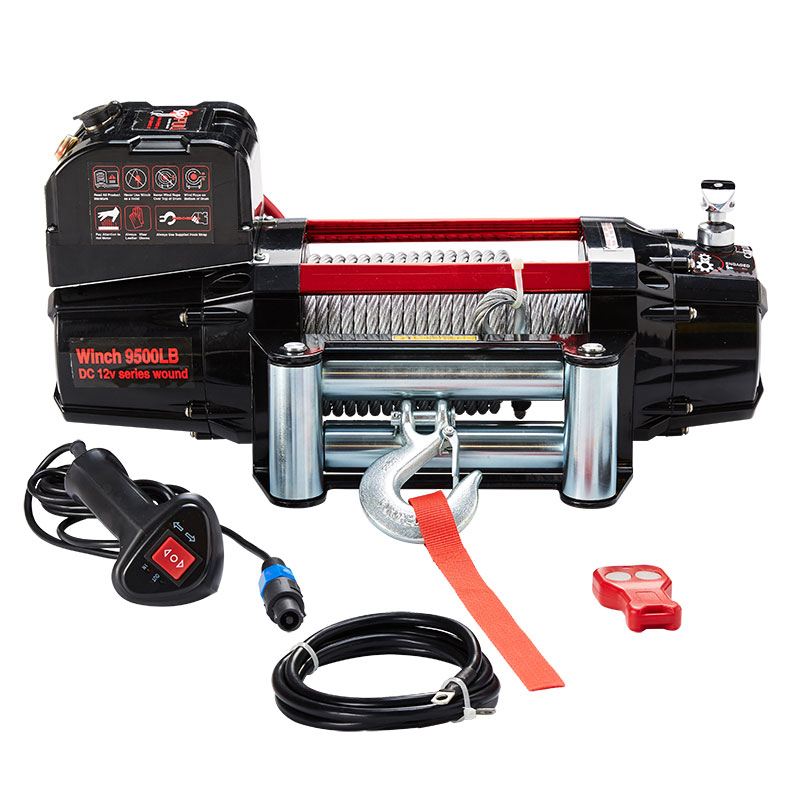

PULI Electric Winch HZKB7-095 9500LBS
JP-SHZKB7-095PL001

Applications:

Stage

Studio

Installations

Cable Colour:

Black


TECHNICAL DATA:

Rated Line Pull
9500LB(4309kg) single-line
Motor
5.5hp/4.1kw 12V, series Motor
Gear Train
3-stage planetary
Gear Reduction Ratio
216:1
Clutch
turn 180°
Cable

φ9.5mm×27m

Drum Size
φ64mm×224mm
Overall Dimensions
(L×W×H) 21.9''x6.5''x10.2''(557x165x260mm)
Gross Weight
88lbs(40kg)
Duty Cycle

Intermittently

Fairlead
4-way roller fairlead
Package
1pc/box,(630x245x405mm)
Mounting Bolt Pattern
10''x4.5''(254 x 114.3mm)
Remote Control
Included


LINE SPEED& DRAW-FIRST LAYER:

Line Pull

Lbs

NO

2000

4000

6000

8000

9500

Kgs

LOAD

907

1814

2721

3630

4309

Line speed

Ft/min

30.2

20.7

18.0

13.8

10.2

7.9

M/min

9.2

6.3

5.5

4.2

3.1

2.4

Motor Current

amps

75

95

195

240

291

325


LINE PULL AND Cable Capacity:

Layer of cable


1

2

3

4

Rated lin

Lbs

9500

8432

7640

7086

Pull per layer

Kgs

4309

3825

3465

3214

Cumulative

Ft

16

39

69

89

Cable capacity

m

5

12

21

27







Mounting Bolt Pattern:


Dimensions
