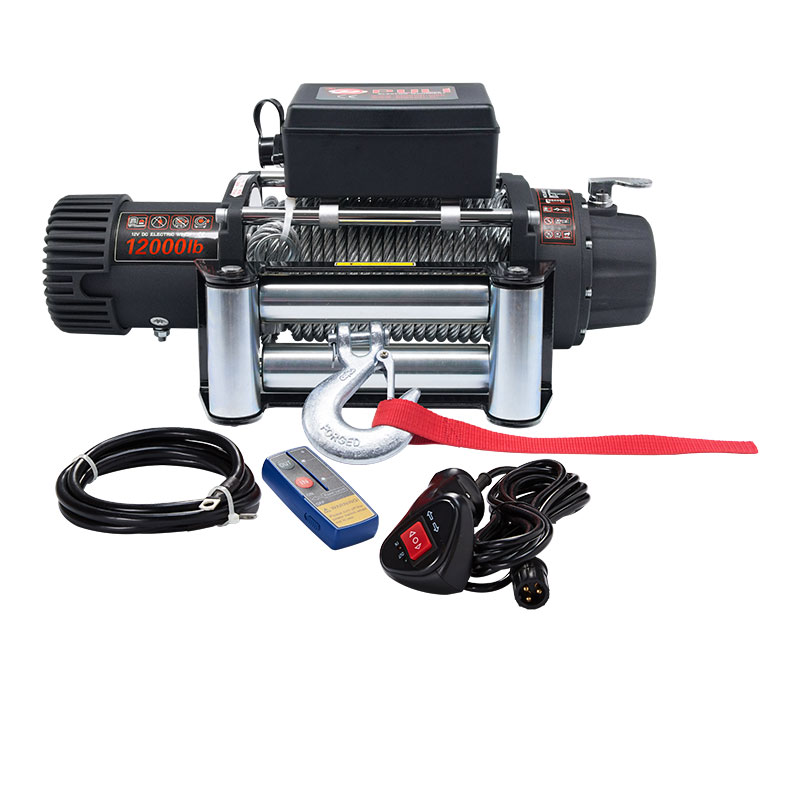

PULI Electric Winch PTDM7-120 SB clutch
JP-SPTDM7-120PL004

Applications:

Stage

Studio

Installations

Cable Colour:

Black


TECHNICAL DATA:

Rated Line Pull
12000LB(5443kg) single-line
Motor
6.0hp/4.5kw 12V, Series Wound motor
Gear Train
3-stage planetary
Gear Reduction Ratio
216:1
Clutch
Up and down 90°
Cable

φ9.5mm×27m

Drum Size
φ64mm×224mm
Overall Dimensions
(L×W×H)21.1”×6.4”×6.7”(535x162x170mm)
Gross Weight
83lbs(37.5kg)
Duty Cycle

Intermittently

Fairlead
4-way roller fairlead
Package
1pc/box, 600x245x370mm
Mounting Bolt Pattern
254 x 114.3mm
Remote Control
Included


LINE SPEED& DRAW-FIRST LAYER:

Line Pull

Lbs

NO

4000

6000

8000

10000

12000

Kgs

LOAD

1814

2721

3630

4532

5443

Line speed

Ft/min

31.8

21.7

17.7

13.5

11.2

7.9

M/min

9.7

6.6

5.4

4.1

3.4

2.4

Motor Current

amps

75

195

240

291

335

350


LINE PULL AND Cable Capacity:

Layer of cable


1

2

3

4

Rated lin

Lbs

12000

10270

9200

8450

Pull per layer

Kgs

5443

4658

4173

3833

Cumulative

Ft

16

39

69

89

Cable capacity

m

5

12

21

27







Mounting Bolt Pattern:

Dimensions
