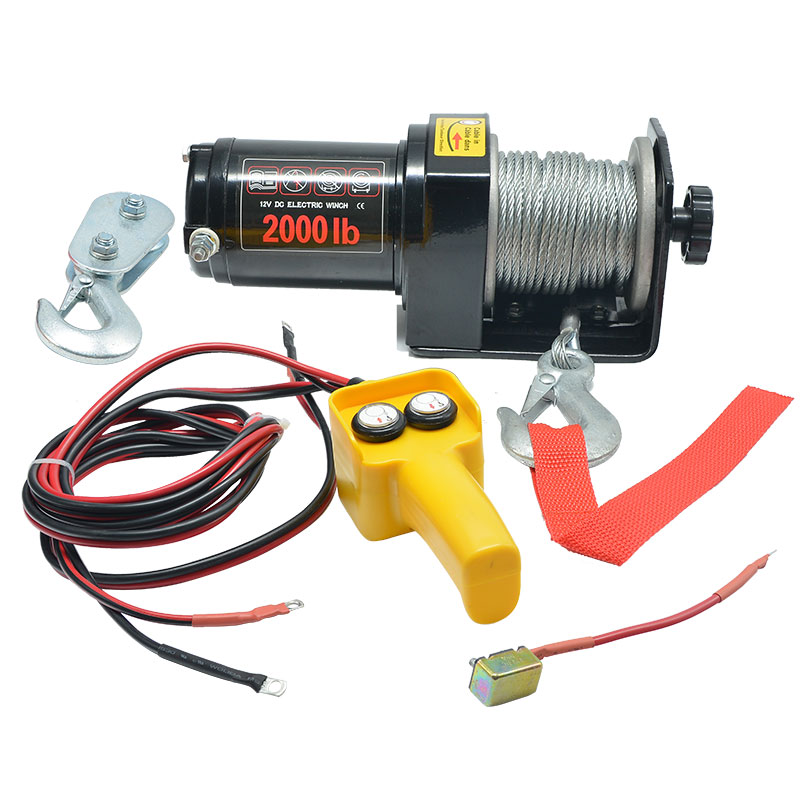

PULI Electric Winch VY7.020 2000LBS
JP-SVY7.020PL001

Applications:

Stage

Studio

Installations

Cable Colour:

Black


TECHNICAL DATA:

Rated Line Pull
2000LB(907kg) single-line
Motor
1.2hp/0.9kw 12V, Permanent Magnet Motor
Gear Train
1-stage planetary
Gear Reduction Ratio
153:1
Clutch
pull and push
Cable

φ4mm×13m

Drum Size
φ32mm×72mm
Overall Dimensions
(L×W×H)11.0”×4.0”×4.0”(280×105×105mm)
Gross Weight
12.0lbs(5.5kg)
Duty Cycle

Intermittently

Fairlead
not included
Package
1pc/box, (415×345×163mm)
Mounting Bolt Pattern
3.15”(80mm )
Remote Control
not included


LINE SPEED& DRAW-FIRST LAYER:

Line Pull

Lbs

NO

500

1000

1500

2000

Kgs

LOAD

227

454

680

907

Line speed

Ft/min

10.5

9.2

7.5

5.9

3.3

M/min

3.2

2.8

2.3

1.8

1.0

Motor Current

amps

10

30

65

85

120


LINE PULL AND Cable Capacity:

Layer of cable


1

2

3

4

5

Rated lin

Lbs

2000

1630

1380

1190

1050

Pull per layer

Kgs

907

739

626

540

476

Cumulative

Ft

6.6

14.0

22

31

43

Cable capacity

m

2.0

4.3

6.8

9.5

13







Mounting Bolt Pattern:

Dimensions
